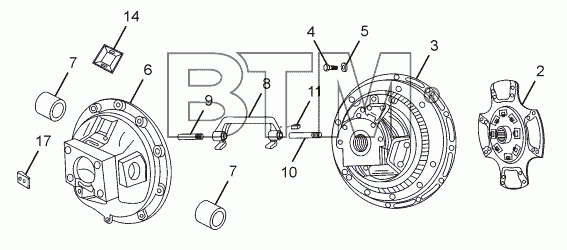

Каталог запасных частей к технике: Tata LPT 1618 TC/52 (справочная информация). CLUTCH
2
2
3
3
4
5
6
7
7
8
9
10
11
14
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | Цена | |
|---|---|---|---|---|
| NEEDLE BEARING | NEEDLE BEARING | NEEDLE BEARING | ||
| FACING RIVETS REPAIR KIT | FACING RIVETS REPAIR KIT | FACING RIVETS REPAIR KIT (FOR M/S VALEO CLUTCH) | ||
| FACING CERAMIC | FACING CERAMIC | FACING CERAMIC | ||
| 275425200109 | 275425200109 | DISC FACING KIT | ||
| WASHER | WASHER | WASHER | ||
| HOLD DOWN BOLT | HOLD DOWN BOLT | HOLD DOWN BOLT | ||
| 275425400120 | 275425400120 | HOLD DOWN BOLT KIT | ||
| LOCK NUT SLEEVE | LOCK NUT SLEEVE | LOCK NUT SLEEVE | ||
| COTTER PIN | COTTER PIN | COTTER PIN | ||
| SPIDER | SPIDER | SPIDER | ||
| 275425400116 | 275425400116 | RELEASE SPIDER REPAIR KIT | ||
| EYE BOLT PIN | EYE BOLT PIN | EYE BOLT PIN | ||
| 275425206303 | 275425206303 | DISC PAD KIT | ||
| ADJUSTING NUT | ADJUSTING NUT | ADJUSTING NUT | ||
| LOCK NUT | LOCK NUT | LOCK NUT | ||
| EYE BOLT | EYE BOLT | EYE BOLT | ||
| 275425400115 | 275425400115 | EYE BOLT AND NEEDLE ROLLER REPAIR KIT | ||
| NEEDLE BEARING | NEEDLE BEARING | NEEDLE BEARING | ||
| PRESSURE PLATE | PRESSURE PLATE | PRESSURE PLATE | ||
| 275425400114 | 275425400114 | PRESSURE PLATE AND NEEDLE ROLLER REPAIR KIT | ||
| SNAP RING | SNAP RING | SNAP RING | ||
| GREASE NIPPLE | GREASE NIPPLE | GREASE NIPPLE | ||
| RIVET | RIVET | RIVET | ||
| 275425408706 | 275425408706 | DIAPHRAGM AND SPIDER KIT | ||
| DIAPHRAGM AND SPIDER KIT | DIAPHRAGM AND SPIDER KIT | DIAPHRAGM AND SPIDER KIT | ||
| SHOULDER BOLT M 10X1.25 | SHOULDER BOLT M 10X1.25 | SHOULDER BOLT M 10X1.25 | ||
| NUT M 10X1.25 | NUT M 10X1.25 | NUT M 10X1.25 | ||
| SPRING WASHER | SPRING WASHER | SPRING WASHER | ||
| WASHER M 10 | WASHER M 10 | WASHER M 10 | ||
| BOLT M 10X1.25 | BOLT M 10X1.25 | BOLT M 10X1.25 | ||
| PRESSURE PLATE (WITH ROLL PIN) | PRESSURE PLATE (WITH ROLL PIN) | PRESSURE PLATE (WITH ROLL PIN) | ||
| 275425400125 | 275425400125 | COVER SUB ASSY | ||
| ASSY.(1.75"SPLINE) | ASSY.(1.75"SPLINE) | ASSY.(1.75"SPLINE) | ||
| 275425600102 | 275425600102 | RELEASE BEARING SUB | ||
| 275425606701 | 275425606701 | WEAR PAD | ||
| BEARING | BEARING | BEARING | ||
| DRIVE STRAP | DRIVE STRAP | DRIVE STRAP | ||
| SHOULDER BOLT M 10X1.25 | SHOULDER BOLT M 10X1.25 | SHOULDER BOLT M 10X1.25 | ||
| NUT M 10X1.25 | NUT M 10X1.25 | NUT M 10X1.25 | ||
| SPRING WASHER | SPRING WASHER | SPRING WASHER | ||
| WASHER M 10 | WASHER M 10 | WASHER M 10 | ||
| BOLT M 10X1.25 | BOLT M 10X1.25 | BOLT M 10X1.25 | ||
| 275225400112 | 275225400112 | DRIVE STRAP KIT | ||
| 275425400126 | 275425400126 | PRESSURE PLATE(WITH ROLL PIN) | ||
| RIVET PAD | RIVET PAD | RIVET PAD | ||
| DISC PAD | DISC PAD | DISC PAD | ||
| SLEEVE BUSHING | SLEEVE BUSHING | SLEEVE BUSHING | ||
| 275425400119 | 275425400119 | RELEASE SLEEVE REPAIR KIT | ||
| LOCK NUT SLEEVE | LOCK NUT SLEEVE | LOCK NUT SLEEVE | ||
| SLEEVE | SLEEVE | SLEEVE | ||
| SLEEVE BUSHING | SLEEVE BUSHING | SLEEVE BUSHING | ||
| ADJ.RING | ADJ.RING | ADJ.RING | ||
| 275425400110 | 275425400110 | RELEASE LEVER REPAIR KIT | ||
| RELEASE LEVER | RELEASE LEVER | RELEASE LEVER | ||
| RETRACTOR SPRING | RETRACTOR SPRING | RETRACTOR SPRING | ||
| PRESS PLATE PIN | PRESS PLATE PIN | PRESS PLATE PIN | ||
| NEEDLE BEARING | NEEDLE BEARING | NEEDLE BEARING | ||
| WASHER | WASHER | WASHER | ||
| RETAINER SPRING | RETAINER SPRING | RETAINER SPRING | ||
| 275425400111 | 275425400111 | PRESSURE SPRING REPAIR KIT | ||
| PRESSURE SPRING | PRESSURE SPRING | PRESSURE SPRING | ||
| PRESSURE SPRING | PRESSURE SPRING | PRESSURE SPRING | ||
| GREASE NIPPLE | GREASE NIPPLE | GREASE NIPPLE | ||
| SLEEVE BEARING | SLEEVE BEARING | SLEEVE BEARING | ||
| WELDING W/BRG.HSG.WEAR PAD | WELDING W/BRG.HSG.WEAR PAD | WELDING W/BRG.HSG.WEAR PAD | ||
| COVER PLATE | COVER PLATE | COVER PLATE | ||
| ADJ.RING | ADJ.RING | ADJ.RING | ||
| BEARING HOUSING | BEARING HOUSING | BEARING HOUSING | ||
| RELEASE BEARING SUB ASSY. | RELEASE BEARING SUB ASSY. | RELEASE BEARING SUB ASSY. | ||
| COTTER PIN | COTTER PIN | COTTER PIN | ||
| LOCK NUT SLEEVE | LOCK NUT SLEEVE | LOCK NUT SLEEVE | ||
| 275425400113 | 275425400113 | FULL RELEASE LEVER ASSY. REPAIR KIT | ||
| WELDING W/BRG.HSG.WEAR PAD | WELDING W/BRG.HSG.WEAR PAD | WELDING W/BRG.HSG.WEAR PAD | ||
| BEARING HOUSING | BEARING HOUSING | BEARING HOUSING | ||
| RELEASE BEARING HOUSING SUB ASSY. | RELEASE BEARING HOUSING SUB ASSY. | RELEASE BEARING HOUSING SUB ASSY. | ||
| 275425400112 | 275425400112 | RELEASE BEARING CASTING REPAIR KIT | ||
| SPIDER | SPIDER | SPIDER | ||
| 2 | 275225200106 | "352 DIA. CL. DISC ASSY. (1.75"" SPLINE)" | ||
| 2 | 275225200105 | "352 DIA. CL. DISC ASSY. (1.75"" SPLINE)" | ||
| 3 | 275225400105 | "352 DIA. CL. COVER ASSY (1.75"" SPLINE)" | ||
| 3 | 275225400111 | "352 DIA. CL. COVER ASSY (1.75"" SPLINE)" | ||
| 4 | 275425408001 | HEX SCREW | ||
| 5 | 275425409201 | FLAT WASHER CLUTCH HOUSING | ||
| 6 | 269125100101 | SUB. ASSY. CLUTCH HOUSING | ||
| 7 | 275425103401 | BUSH (CLUTCH HOUSING RELEASE SYSTEM) | ||
| 8 | 275425605101 | CLUTCH RELEASE YOKE | ||
| 9 | 275425607901 | CROSS SHAFT | ||
| 10 | 275425607902 | CROSS SHAFT | ||
| 11 | 275425605901 | KEY (CLUTCH RELEASE YOKE) | ||
| 14 | 0422510004J | CLUTCH COVER HOUSING UPPER | ||
| 17 | 269125108201 | COVER REPAIR KIT (FOR M/S SETCO CLUTCH) |
