Каталог запасных частей к технике: Tata SFC 407 LHD Euro II (справочная информация). MOVING PARTS

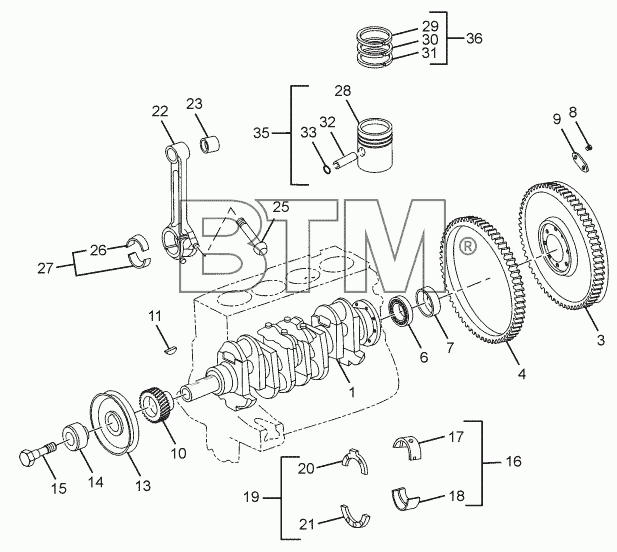

Позиция на иллюстрации	Заводской номер детали	Название детали
1869910055	1869910055	PIN MAIN BEARING SET
253403114801	253403114801	CYLINDRICAL PIN
252303107802	252303107802	SEALING RING HALF
885403012523	885403012523	KIT, CRANSHAFT SEALING RING HALF CONSISTING OF
252703138603	252703138603	SPACER (OIL SLINGER)
252503138201	252503138201	OIL SLINGER
1	253403107913	CRANKSHAFT STD (INTEGRAL)
3	253403110128	ASSY. FLYWHEEL WITH RING GEAR
4	253403115401	RING GEAR
6	253403103102	BALL BEARING
7	3120310533	LOCKING RING (IN CRANKSHAFT TO FIX THE BEARING)
8	3129900301	BOLT
9	3129940232	LOCKING PLATE
10	3520520003	CRANK SHAFT GEAR
11	13650510091	WOODRUFF KEY 8X13
13	253403137016	PULLEY-CRANKSHAFT
14	252303138603	THRUST SPACER
15	252303133202	LOCK (V. DAMPER)
16	885403372534	SET OF MAIN BEARING W/O THRUST WASHER STD CONSISTING OF :
16	885403392534	SET OF MAIN BEARING W/O THRUST WASHER RS I CONSISTING OF :
16	885403402534	SET OF MAIN BEARING W/O THRUST WASHER RS II CONSISTING OF :
16	885403422534	SET OF MAIN BEARING W/O THRUST WASHER RS IV CONSISTING OF :
16	885403412534	SET OF MAIN BEARING W/O THRUST WASHER RS III CONSISTING OF :
17	MAIN BEARING UPPER STD	MAIN BEARING UPPER STD
17	MAIN BEARING UPPER RS IV	MAIN BEARING UPPER RS IV
17	MAIN BEARING UPPER RS III	MAIN BEARING UPPER RS III
17	MAIN BEARING UPPER RS II	MAIN BEARING UPPER RS II
17	MAIN BEARING UPPER RS I	MAIN BEARING UPPER RS I
18	MAIN BEARING LOWER RS III	MAIN BEARING LOWER RS III
18	MAIN BEARING LOWER STD	MAIN BEARING LOWER STD
18	MAIN BEARING LOWER STD	MAIN BEARING LOWER STD
18	MAIN BEARING LOWERRS II	MAIN BEARING LOWERRS II
18	MAIN BEARING LOWER RS IV	MAIN BEARING LOWER RS IV
19	885403502534	SET OF THRUST WASHER RS I CONSISTING OF
19	885403512534	SET OF THRUST WASHER RS II CONSISTING OF
19	885403492534	SET OF THRUST WASHER STD CONSISTING OF
20	THRUST WASHER UPPER HALF STD	THRUST WASHER UPPER HALF STD
20	THRUST WASHER UPPER HALF RS I	THRUST WASHER UPPER HALF RS I
20	THRUST WASHER UPPER HALF RS II	THRUST WASHER UPPER HALF RS II
21	THRUST WASHER LOWER HALF STD	THRUST WASHER LOWER HALF STD
21	THRUST WASHER LOWER HALF RS I	THRUST WASHER LOWER HALF RS I
21	THRUST WASHER LOWER HALF RS II	THRUST WASHER LOWER HALF RS II PISTON AND RING SET
22	253403150110	ASSY. CONNECTING ROD W/O BEARING
23	3520381150	CON ROD BUSH
23	885403522534	CON ROD BUSH SET STD CONSISTING OF :
25	252503153204	CONNECTING ROD BOLT (FULLY THREADED) CONNECTING ROD BEARINGS
26	CON ROD BEARING RS IV	CON ROD BEARING RS IV
26	CON ROD BEARING RS III	CON ROD BEARING RS III
26	CON ROD BEARING RS II	CON ROD BEARING RS II
26	CON ROD BEARING STD	CON ROD BEARING STD
26	CON ROD BEARING RS I	CON ROD BEARING RS I
27	885403432534	CON ROD BEARING SET STD CONSISTING OF
27	885403452534	CON ROD BEARING SET RS I CONSISTING OF
27	885403462534	CON ROD BEARING SET RS II CONSISTING OF
27	885403472534	CON ROD BEARING SET RS III CONSISTING OF
27	885403482534	CON ROD BEARING SET RS IV CONSISTING OF
28	PISTON STD	PISTON STD
28	PISTON (STD-I DIA 96.900)M/s GIL BS-II	PISTON (STD-I DIA 96.900)M/s GIL BS-II
28	PISTON STD	PISTON STD
29	DOUBLE TRAPEZE RING GR I	DOUBLE TRAPEZE RING GR I
29	252503149964	INTER.STEPPED KEYSTONE RING TOP
30	NAPIER RING GR II	NAPIER RING GR II
30	252503149965	INTER STEPPED COMPRESSION RING
31	252503140355	ASSY.OIL CONTROL RING GROOVE III CONNECTING ROD
31	ASSY. OIL CONTROL RING	ASSY. OIL CONTROL RING
32	PISTON PIN	PISTON PIN
32	PISTON PIN	PISTON PIN
32	PISTON PIN	PISTON PIN
33	CIRCLIP	CIRCLIP
33	CIRCLIP	CIRCLIP
33	CIRCLIP	CIRCLIP
35	253403990227	SET OF BARE PISTON :(ESCORTS) CONSISTS OF
35	885403732534	SET OF BARE PISTON 4SPTC STD EURO I & II (SLIPPER) CONSISTING OF :
35	885403682534	SET OF BARE PISTON 4SPTC STD EURO I & II (NON SLIPPER) CONSISTING OF :
36	253403990228	SET OF PISTON RING (GOETZE):4SP BS:II CONSISTS OF:
36	885403742534	SET OF PISTON RINGS STD 4SPTC / 497TC EURO I & II CONSISTING OF :
