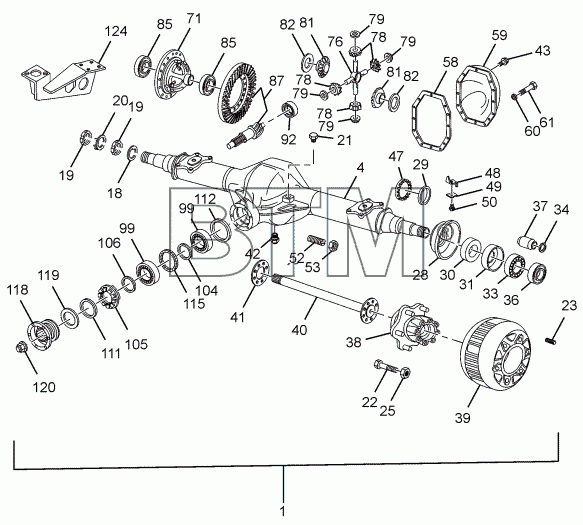

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II (справочная информация). REAR AXLE
1
4
18
19
19
20
21
22
23
25
28
29
30
31
33
34
34
34
34
34
34
34
34
34
34
36
37
38
39
40
41
42
43
47
48
49
50
52
53
58
59
60
61
71
76
76
78
78
78
78
79
79
79
79
81
81
81
82
82
82
82
82
82
82
82
85
85
87
92
99
99
104
105
106
111
112
112
112
112
112
112
112
112
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
115
118
119
120
124
124
| Позиция на иллюстрации | Заводской номер детали | Название детали | Цена | |
|---|---|---|---|---|
| 266135108202 | 266135108202 | OIL SLINGER | ||
| 9976747 | 9976747 | OIL SEAL, HUB OUTER (SINGLE LIP) | ||
| 14580611002 | 14580611002 | INTERNAL CIRCLIP 110X4 | ||
| 264342309901 | 264342309901 | POLE WHEEL REAR | ||
| 264342303302 | 264342303302 | SENSOR MTG. BRACKET (REAR) - ABS | ||
| 264342303303 | 264342303303 | SENSOR MTG. BRACKET (REAR) - ABS | ||
| 263242103403 | 263242103403 | SENSOR BUSH -ABS | ||
| 264354209929 | 264354209929 | SENSOR -`L TYPE' (WHEEL SPEED) . | ||
| 261235308201 | 261235308201 | LOCKING PLATE | ||
| 266135306101 | 266135306101 | LOCKING PLATE (DIFFERENTIAL CASE) | ||
| 266135308004 | 266135308004 | HEX. SCREW | ||
| 266135307801 | 266135307801 | DUST SEAL | ||
| 266135300125 | 266135300125 | DIFFERENTIAL GEAR AND SPIDER KIT CONSISTS OF: | ||
| 1 | 266135000140 | ASSY. REAR AXLE COMPLETE WITH BRAKE ( 28/9 CWP RATIO ) WITH ABS | ||
| 4 | 266135100139 | ASSY. REAR AXLE HOUSING WITH SUPPORTING TUBES, WITH ABS | ||
| 18 | 261235608601 | SPACER | ||
| 19 | 261235606501 | LOCKING RING | ||
| 20 | 261235608202 | LOCKING PLATE | ||
| 21 | 257433150102 | ASSY. BREATHER | ||
| 22 | 282140106701 | HUB PIN REAR | ||
| 23 | 266535608801 | STUD M16 | ||
| 25 | 12302696029 | HEX NUT M12X1.5 | ||
| 28 | 266135608201 | OIL CATCHER, (FOR ABS) | ||
| 29 | 266135108602 | PRESSURE RING | ||
| 30 | 266135607701 | OIL SEAL, HUB INNER (DOUBLE LIP) | ||
| 31 | 266135608601 | SPACER | ||
| 33 | 257535603110 | TAPER ROLLER BEARING, INNER | ||
| 34 | 266135608301 | SHIM-0.05 THK. | ||
| 34 | 266135608302 | SHIM-0.10 THK. | ||
| 34 | 266135608303 | SHIM-0.15 THK. | ||
| 34 | 266135608304 | SHIM-0.20 THK. | ||
| 34 | 266135608305 | SHIM-0.25 THK. | ||
| 34 | 266135608306 | SHIM-0.30 THK. | ||
| 34 | 266135608307 | SHIM-0.50 THK. | ||
| 34 | 266135608308 | SHIM-1.00 THK. | ||
| 34 | 266135608309 | SHIM-1.50 THK. | ||
| 34 | 266135608310 | SHIM-2.5 THK. | ||
| 36 | 261235603102 | TAPER ROLLER BEARING, OUTER | ||
| 37 | 266135608602 | SPACER TUBE | ||
| 38 | 266135600118 | ASSY.REAR HUB (FOR ABS) | ||
| 39 | 264142103701 | BRAKE DRUM | ||
| 40 | 266135707902 | REAR AXLE SHAFT | ||
| 41 | 266135605302 | GASKET (FOR BRAKE DRUM WITH HUB) | ||
| 42 | 266335107201 | MAGNETIC DRAIN PLUG | ||
| 43 | 9970506 | SCREW PLUG OIL FILLING | ||
| 47 | 266135306501 | THREADED RING | ||
| 48 | 3129941201 | LOCKING PLATE | ||
| 49 | 261235608202 | LOCKING PLATE | ||
| 50 | 11323996191 | HEX. SCREW M 8X12 | ||
| 52 | 261235300103 | ADJUSTING PIN | ||
| 53 | 12080901800 | HEX. THIN NUT M 18X1.5 | ||
| 58 | 266135105301 | GASKET (BETWEEN R.A. HOUSING & REAR COVER) | ||
| 59 | 266135100105 | ASSY. COVER REAR AXLE HOUSING | ||
| 60 | 12520698050 | SPRING WASHER B 10 | ||
| 61 | 11323998185 | HEX. SCREW M 10X18 | ||
| 71 | 266135300121 | DIFFERENTIAL HOUSING ASSY. | ||
| 76 | 266135305103 | DIFFERENTIAL SPIDER | ||
| 76 | DIFFERENTIAL SPIDER | DIFFERENTIAL SPIDER | ||
| 78 | 266135305419 | DIFFERENTIAL BEVEL PINION | ||
| 78 | BEVEL GEAR | BEVEL GEAR | ||
| 79 | 266135309210 | SPHERICAL WASHER (STEEL) | ||
| 81 | 266135305420 | REAR AXLE SHAFT GEAR | ||
| 81 | GEAR R.A SHAFT | GEAR R.A SHAFT | ||
| 82 | 266135309202 | THRUST WASHER, SHAFT GEAR 1.95 MM | ||
| 82 | 266135309203 | THRUST WASHER, SHAFT GEAR 2.00 MM | ||
| 82 | 266135309204 | THRUST WASHER, SHAFT GEAR 2.05 MM | ||
| 82 | 266135309205 | THRUST WASHER, SHAFT GEAR 2.10 MM | ||
| 82 | 266135309206 | THRUST WASHER, SHAFT GEAR 2.15 MM | ||
| 82 | 266135309207 | THRUST WASHER, SHAFT GEAR 2.20 MM | ||
| 82 | 266135309208 | THRUST WASHER, SHAFT GEAR 2.25 MM | ||
| 85 | 261235303101 | TAPER ROLLER BEARING (55X100X26.75) | ||
| 87 | 266135300119 | SET CROWN WHEEL AND PINION (31/8 RATIO) | ||
| 92 | 266135303116 | CYLINDRICAL ROLLER BRG. (PINION NOSE) | ||
| 99 | 266135303105 | TAPER ROLLER BRG. (TAIL PINION) | ||
| 104 | 266135308632 | SPACER (BETWEEN TAIL PINION BRGS.) | ||
| 105 | 266135306501 | THREADED RING | ||
| 106 | 266135308668 | SPACER (BETWEEN BRG. AND FLANGE) | ||
| 111 | 266135307702 | OIL SEAL TAIL PINION | ||
| 112 | 266135308303 | SHIM 0.15 THICK | ||
| 112 | 266135308304 | SHIM 0.20 THICK | ||
| 112 | 266135308305 | SHIM 0.25 THICK | ||
| 112 | 266135308306 | SHIM 0.30 THICK | ||
| 112 | 266135308307 | SHIM 0.45 THICK | ||
| 112 | 266135308308 | SHIM 0.50 THICK | ||
| 112 | 266135308309 | SHIM 1.0 THICK | ||
| 112 | 266135308310 | SHIM 1.5 THICK | ||
| 115 | 266135308637 | SPACER RING, TAIL PINION 7.64 THICK | ||
| 115 | 266135308638 | SPACER RING, TAIL PINION 7.66 THICK | ||
| 115 | 266135308639 | SPACER RING, TAIL PINION 7.68 THICK | ||
| 115 | 266135308641 | SPACER RING, TAIL PINION 7.72 THICK | ||
| 115 | 266135308642 | SPACER RING, TAIL PINION 7.74 THICK | ||
| 115 | 266135308644 | SPACER RING, TAIL PINION 7.78 THICK | ||
| 115 | 266135308646 | SPACER RING, TAIL PINION 7.82 THICK | ||
| 115 | 266135308647 | SPACER RING, TAIL PINION 7.84 THICK | ||
| 115 | 266135308648 | SPACER RING, TAIL PINION 7.86 THICK | ||
| 115 | 266135308649 | SPACER RING, TAIL PINION 7.88 THICK | ||
| 115 | 266135308650 | SPACER RING, TAIL PINION 7.90 THICK | ||
| 115 | 266135308651 | SPACER RING, TAIL PINION 7.92 THICK | ||
| 115 | 266135308652 | SPACER RING, TAIL PINION 7.94 THICK | ||
| 115 | 266135308653 | SPACER RING, TAIL PINION 7.96 THICK | ||
| 115 | 266135308654 | SPACER RING, TAIL PINION 7.98 THICK | ||
| 115 | 266135308655 | SPACER RING, TAIL PINION 8.00 THICK | ||
| 115 | 266135308656 | SPACER RING, TAIL PINION 8.02 THICK | ||
| 115 | 266135308657 | SPACER RING, TAIL PINION 8.04 THICK | ||
| 115 | 266135308658 | SPACER RING, TAIL PINION 8.06 THICK | ||
| 115 | 266135308659 | SPACER RING, TAIL PINION 8.08 THICK | ||
| 115 | 266135308660 | SPACER RING, TAIL PINION 8.10 THICK | ||
| 115 | 266135308663 | SPACER RING, TAIL PINION 8.12 THICK | ||
| 115 | 266135308664 | SPACER RING, TAIL PINION 8.14 THICK | ||
| 115 | 266135308665 | SPACER RING, TAIL PINION 8.16 THICK | ||
| 115 | 266135308666 | SPACER RING, TAIL PINION 8.18 THICK | ||
| 115 | 266135308667 | SPACER RING, TAIL PINION 8.20 THICK | ||
| 118 | 266135305001 | COUPLING FLANGE | ||
| 119 | 266135308203 | DUST COVER | ||
| 120 | 266135306504 | HEX. NUT (TAIL PINION COUPLING FLANGE) | ||
| 124 | 264142310126 | ASSY. BRAKE CHAMBER MOUNTING BRACKET RH | ||
| 124 | 264142310130 | ASSY. BRAKE CHAMBER MOUNTING BRACKET LH |
