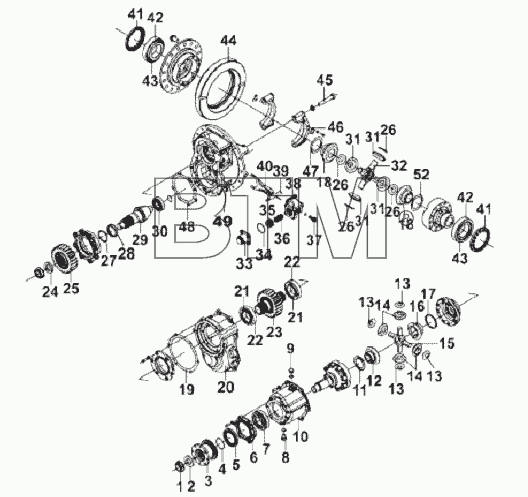

Каталог запасных частей к технике: DongFeng L3251A3 (вар.) (справочная информация). Middle Axle Main Retarder

Позиция на иллюстрации | Заводской номер детали | Название детали | Цена | |
---|---|---|---|---|
2510ZHS01-410 | 2510ZHS01-410 | Inter-axle Differential Assembly | ||
Q40512 | Q40512 | Тяжелая пружинная шайба | ||
Q151B1245-0H1 | Q151B1245-0H1 | Hexagon Bolt | ||
2502ZHS01-084 | 2502ZHS01-084 | Adjusting Washer | ||
2502ZHS01-083 | 2502ZHS01-083 | Adjusting Washer | ||
2502ZHS01-082 | 2502ZHS01-082 | Adjusting Washer | ||
2402ZHS01-384 | 2402ZHS01-384 | Retaining Plate Differential Bearing Cover | ||
2402ZHS01-356 | 2402ZHS01-356 | Bolt - Driven Bevel Gear | ||
2402ZHS01-382 | 2402ZHS01-382 | Adjusting Nut Differential Bearing | ||
2401ZHS01-028 | 2401ZHS01-028 | Locating Pin | ||
Q40512 | Q40512 | Тяжелая пружинная шайба | ||
Q151B1245-0H1 | Q151B1245-0H1 | Hexagon Bolt | ||
24N-01066 | 24N-01066 | Уплотнительная шайба | ||
24N-01066 | 24N-01066 | Уплотнительная шайба | ||
2502010-T1700 | 2502010-T1700 | Middle Axle Main Retarder and Bevel Gear Differential Assembly | ||
2510ZHS01-055 | 2510ZHS01-055 | Oil Seal and Oil Seal Seat Assembly - Middle Axle Input End | ||
1 | 2402ZHS01-072 | Nut | ||
2 | 2402ZHS01-071 | Washer | ||
3 | 2502ZHS01-065 | Flange Assembly - Middle Axle Input End | ||
4 | 2502ZHS01-038 | O Ring - Flange | ||
5 | 2510ZHS01-056 | Oil Seal Assembly - Middle Axle Input End | ||
6 | 2510ZHS01-057 | Oil Seal Seat - Straight-through Shaft Input End | ||
7 | 6315 | Deep Groove Ball Bearing | ||
8 | 24N-01072 | Пробка сливного отверстия в сборе | ||
9 | 24N-01065 | Пробка отверстия уровня масла | ||
10 | 2510ZHS01-411 | Inter-axle Differential Case | ||
11 | 2510ZHS01-426 | Bush | ||
12 | 2510ZHS01-435 | Rear Gear and Bush Assembly | ||
13 | 2510ZHS01-446 | Backing Ring - Differential Gear | ||
14 | 2510ZHS01-445 | Planetary Gear Inter-axle Differential | ||
15 | 2510ZHS01-431 | Spider - Inter-axle Differential Assembly | ||
16 | 2510ZHS01-437 | Rear Side Gear | ||
17 | 2510ZHS01-438 | Wearing Shim | ||
18 | 2402ZHS01-335 | Half Axle Gear - Bevel Gear Differential | ||
19 | 2510ZHS01-422 | Connecting Sleeve | ||
20 | 2502ZHS01-102 | Cylindrical Gear Cover | ||
21 | 30222-2 | Bearing Inner Race Assembly | ||
22 | 30222-1 | Bearing Outer Race | ||
23 | 2510ZHS01-450 | Driving Cylindrical Gear Assembly | ||
24 | 24ZHS01-05067 | Locating Sleeve | ||
25 | 2502ZHS01-051 | Driven Cylindrical Gear - Straight-through Axle | ||
26 | 2402ZHS01-346 | Shim Differential Gear | ||
27 | 32315 | Tapered Roller Bearing | ||
28 | 6216 | Deep Groove Ball Bearing | ||
29 | 2502ZH1827-025 | Middle Axle Driving Bevel Gear | ||
30 | 27314E | Bevel Bearing - Driving Bevel Gear | ||
31 | 2402ZHS01-345 | Planetary Gear - Bevel Gear Differential | ||
32 | 2402ZHS01-331 | Spider Bevel Gear Differential | ||
33 | 25ZHS01-11023 | Differential Lock Control Cylinder | ||
34 | 25ZHS01-11017 | O Ring | ||
35 | 25ZHS01-11016 | Differential Lock Piston | ||
36 | 25ZHS01-11022 | Spring | ||
37 | 25ZHS01-11021 | Sensor Assembly | ||
38 | 25ZHS01-11011 | Differential Lock Cylinder Cap | ||
39 | 25ZHS01-11015 | Shifting Fork Shaft | ||
40 | 25ZHS01-11026 | Shifting Fork - Shaft Differential | ||
41 | 2402ZHS01-381 | Adjusting Nut - Differential Bearing | ||
42 | 32216-1 | Bearing Outer Race | ||
43 | 32216-2 | Bearing Inner Race Assembly | ||
44 | 2502ZH1827-026 | Middle Axle Driven Bevel Gear | ||
45 | 2402ZHS01-119 | Locking Bolt | ||
46 | 2402ZHS01-383 | Retaining Plate Differential Bearing Cover | ||
47 | 2402ZHS01-336 | Supporting Washer - Half Axle Gear | ||
48 | 2502ZHS01-081 | Adjusting Washer |
